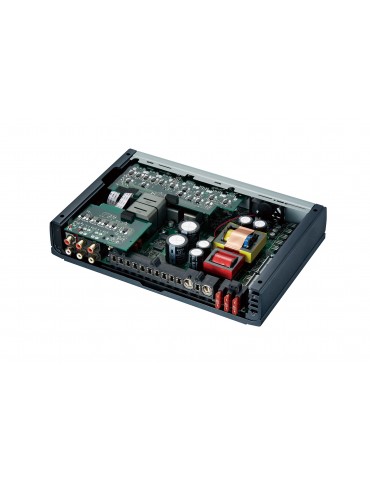

Kenwood eXcelon Reference XR901-5
Write your review
Kenwood eXcelon Reference High-RES Class D 5 Channel Power Amplifier 75W x 4 / 600W x 1
Installations backed by our Lifetime Labor Warranty
| XR901-5 | |||
|---|---|---|---|
| CEA-2006 Standard | 60 W x 4 | RMS Watts per channel @ 4 ohms, 1% THD+N | |
| 400 W x 1 | RMS Watts per channel @ 4 ohms, 1% THD+N | ||
| 78dB | Signal to Noise Ratio (Reference: 1 Watt into 4 ohms) | ||
| Max Power Output | - | ||
| Rated Power Output | 14.4 V | ||
| 60 W x 4 / 400W x 1 | (4Ω) (20 Hz - 20 kHz, 1.0% THD) (20 Hz - 200 Hz, 1.0% THD) | ||
| 75 W x 4 / 600W x 1 | (2Ω) (1 kHz, 1.0% THD) (100 Hz, 1.0% THD) | ||
| Frequency Response | 20-20kHz(±1dB) | ||
| Input Sensitivity | 0.2 V - 5.0 V (MIN-MAX) | ||
| Input Impedance | 10 kΩ | ||
| Signal to Noise Ratio | 100 dB | ||
| Low Pass Filter Frequency | (-24dB/oct) | ||
| 50 Hz - 200 Hz (variable) | Low-Pass Filter Frequency | ||
| High Pass Filter Frequency | (-12 dB/oct.) | ||
| 50 Hz - 200 Hz (variable) | High-Pass Frequency | ||
| Dimensions (W x H x D) | 260 x 51 x 169 mm (10-1/4 x 2 x 6-5/8) | ||
